Needle with 1.4x8mm ISO FDX-B Animal Microchip

1.4x8mm ISO FDX-B Microchip Needle

Category: Animal Microchip

Animal Microchips

Model DWA-008

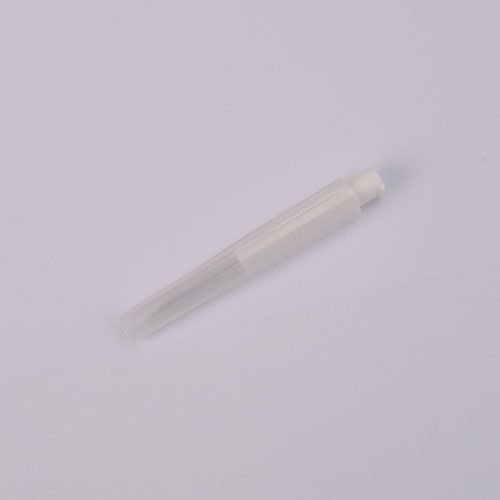

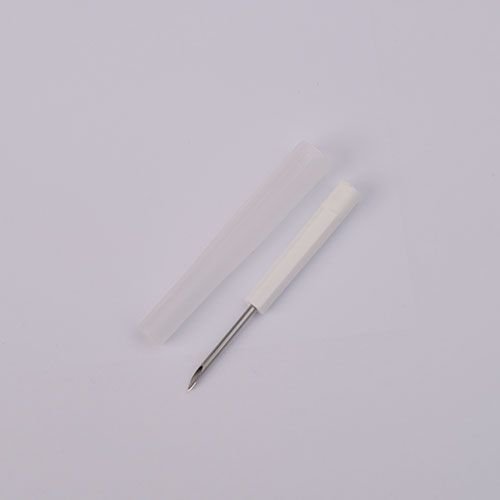

Overview - Replacement 1.4x8mm animal microchip Needle

Replacement needle with microchip is a kind of tag specially designed for pets,livestock,and animal. It is syringed into animal's body by implanter gun. It includes the disposable needle and the electronic tag, two barcodes that meet the IS011784/11785 standard.

It uses the microchips of the highest technology in the world and it can be served to read and write, and also has a unique design of data security. In the animal identification management, it can trace the animal’s identification by using ISO readers together.

It uses EO to sanitize and has a ten years period of validity.

Specifications -Replacement needle with animal microchip,134.2kHz Bioglass

Frequency 134.2kHz
Chip Standard ISO11784/11785 FDX-B Compliant microchip
Chip type HitagS-256,EM4305
Bio Glass HID(Sokymat) BIO GLASS 8625
ChipSize Diameter: 1.4 mm ± 0.1 mm
Length: 8.0 mm ± 0.4mm
Chip Material Bioglass encapsulation with a proof-immigration coating
Injector Material Polypropylene (PP)
Applicator Colour Blue
Applicator Weight 46±1g
Applicator Length 109*76mm
Applicator Thickness 19mm
Applicator Material ABS
Disinfection EO gas ,Sealed and sterilized with a shelf life of 10 years
Protection Standard Waterproof according to IP 67
Chemical Resistance Read-only or one time programmable or read-write reprogrammable
Storage Temperature Storage range: -20°C to + 50°C (up to 1000Hours)
Operating Temperature Operating range: 0°C to 55 °C
LOT 5 Years

Product feature - Replacement needle with microchip,134.2kHz Bioglass,Animal ID ISO Compliant Transponder

Tamperproof Ensures security in livestock management programs.
Durable Guaranteed to last the life of the animal.
Designed to protect technology inside.
Dependable 100% performance guaranteed.
ICAR Approved International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation.
ISO Compliant Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards.

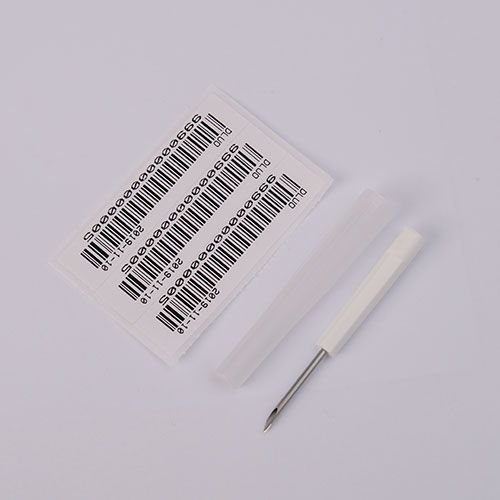

Components One set contains one Reusable Gun-applicator, one Needle with Needle-holder and Cap, one Microchip, two or three Bar-code Stickers and one printed Pouch.
Bio-Technology Microchip won’t migrate after implanted as Parylene-coated technology enables the microchip grow together with the animal’s hypoderm
Electronic File ICAR approved ID numbers in electronic file.
Easy management in PC or PDA.
Reading distance Reading distance varies greatly per application due to reader quality & environmental factors.
Recommendation  DW(A)R152 and DW(A)R152st reader can read ISO compliant chips and transfer data to PC via Bluetooth or USB. DW(A)R152i2 reads chip and barcode.

Particularly suitable for Pet management, livestock & poultry management, Wild animal management
