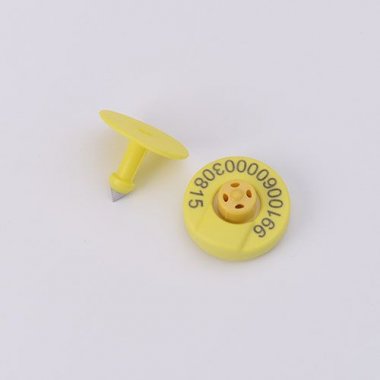

RFID HDX Electronic Ear Tags Sets

Category: Electronic Ear Tags

Electronic Ear tags

Model DWB-002YH

Overview – RFID HDX (Half Duplex) Electronic Ear Tags

Electronic identification animal ear tags approved for livestock identification are passive tags. They have no bat-tery or power source of their own. Each tag contains a transponder that is activated when introduced into an electromagnetic field produced by an RFID reader. When activated, it will send the transponder's unique chip number to the reader which in turn sends it to the software contained in a computer, electronic scale head or PDA, etc. The unique transponder chip number contained in each ear tag is also printed on the outside of the tag.

DWB-002YH Series Animal Ear Tag is an ear tag specially designed for the management of the animal raising and butchering. It meets the international standard of of ISO11784/11785 HDX. It is designed and produced on the imported high-level Microchips and it can be served to read and write, and also has a unique design of data security. In the animal raising and butchering, it can trace the animal’s identification by using our company’s readers together.

Certificate: International Committee for Animal Recording(ICAR)

Specifications –134.2 kHz Animal Electronic Ear tags

RFID CompatibilityISO11784/85 compliant
Duplex ModeHDX
Operating Frequency134.2kHz
MicrochipHDX Chip
Height13.3mm ± 0.1mm
Diameter30.0mm ± 0.1mm
Weight10 grams
Available ColoursYellow White or any other colours
MaterialTPU(Thermoplastic Polyurethane)
PinMetal or Nylon
Max Tension350N
Anti-Collision StandardIEC 68-2-27
Shaking StandardIEC 68-2-6
Chemical resistanceWith IP67 standards, Waterproof, anti-ultraviolet, anti-soaking
TamperproofEnsures security in livestock management programs
Reading DistanceReading distance varies greatly per application due to reader quality & environmental factors
Working Temperature Operating at -30°C to 85 °C
Store TemperatureStorage at -30°C to 65°C
Working Humidity5% to 90% no frost
Period of Validity>5 years

Product Feature - RFID HDX Electronic Ear Tags Sets

  • 100% performance guaranteed, Designed to protect technology inside.
  • Guaranteed to last the life of the animal.
  • International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation.
  • Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards.
  • ID numbers and other laser printings as you required A male part and a female part with a microchip inside Patented application eliminates ripped & torn ears

Application Usage –134.2 kHz Livestock ID Tags

Can be used in the management of breeding stock dairy stock, fatstock and animal slaughter to trace individual identification.

Provide the cattle rfid ear tags, swine rfid ear tags, goat rfid ear tags, sheep rfid ear tags, deer rfid ear tags, any livestock tags!
