Syringe with an RFID Microchip (2.12x12mm ISO FDX-B rfid chip) - Enhanced Edition

2.12x12mm ISO FDX-B Microchip Syringe (Enhanced Edition)

Category: Animal Microchip

Animal Microchips

Model DWA-006

Overview - 2.12x12mm Standard Syringe with ISO FDX-B Microchip

Syringed Electronic Tag is a kind of tag specially designed for pets,livestock,and animal. It is syringed into animal's body by certain syringes. It includes the disposable syringe and the electronic tag, bar tag that meet the IS011784/11785 standard. It uses EO to sanitize and has a five year period of validity.

Specifications -Single-use health syringe with 2.12*12mm subsize microchip,134.2kHz Bioglass,Animal Microchip Implant

Frequency 134.2kHz
Chip Standard ISO11784/11785 FDX-B Compliant transponder
Chip type HitagS-256,EM4305
BIO Glass HID(Sokymat) BIO GLASS 8625
ChipSize Diameter: 2.12 mm ± 0.1 mm
Length: 12.0 mm ± 0.5mm
Injector Size Width: 50 mm ± 1 mm
Length: 120 mm ± 2mm
Chip Material Bioglass encapsulation with a proof-immigration coating
Injector Material Polypropylene (PP)
Disinfection EO gas ,Sealed and sterilized with a shelf life of 3 years
Waterproof according to IP 67
Chemical Resistance Read-only or one time programmable or read-write reprogrammable
Data Storage range: -20°C to + 50°C (up to 1000Hours)
Temperature Operating range: 20°C to 55 °C
LOT 5 Years

Product feature - Disposable health syringe with an RFID Microchip,134.2kHz Bioglass, Animal ID ISO Compliant Transponder

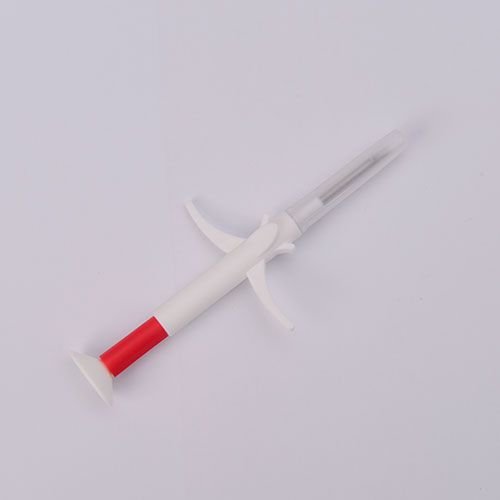

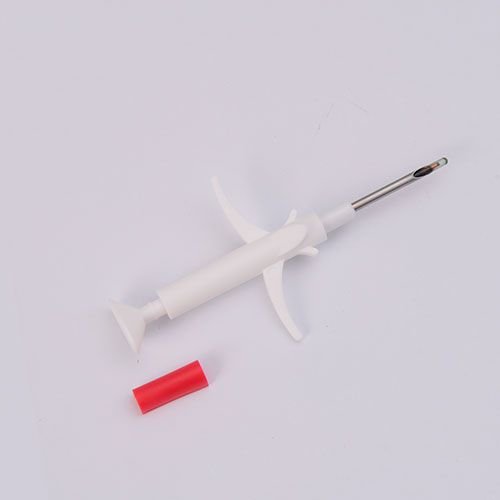

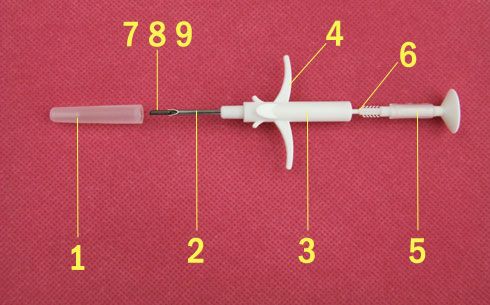

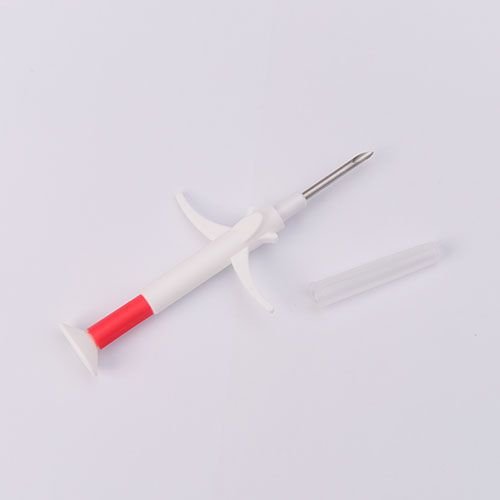

  • Needle Cover:with anti fall out device to avoid the transpondor fall out from needle during transpotation

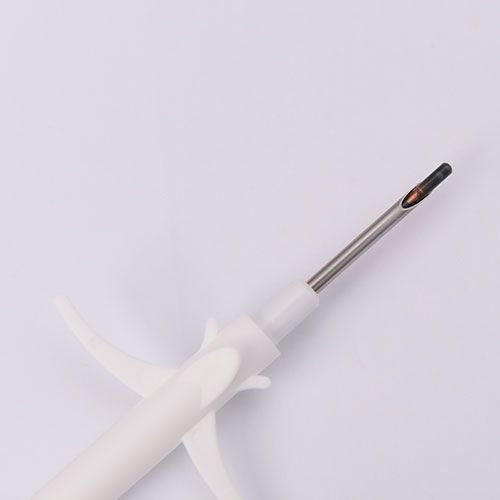

  • Needle:use ultra sharp needle easy to inject
  • one-step molding:make the syringe stronger
  • good ergonomics design:make the injection easy and relax
  • Plunger stopper:avoid over push and tissue fluid backflow
  • Pushrod damping:good feel of injection
  • Bioglass transpobdor with proof-migration coating
  • Hitags or Em chips: quality guaranteed
  • Medical silicone oil:from Dow Corning company

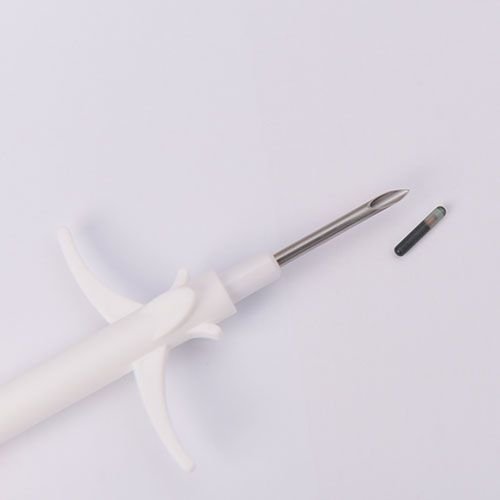

2.12x12mm ISO FDX-B Microchip Syringe
Tamperproof Ensures security in livestock management programs.
Durable Guaranteed to last the life of the animal.
Designed to protect technology inside.
Dependable 100% performance guaranteed.
ICAR Approved  International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation.
ISO Compliant Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards.

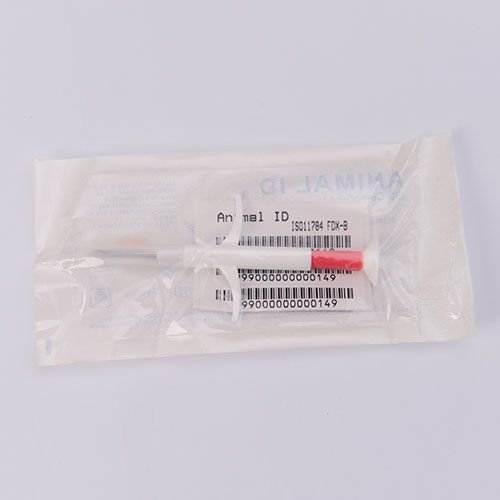

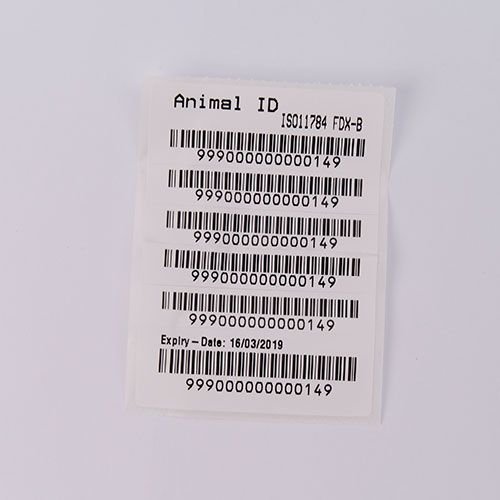

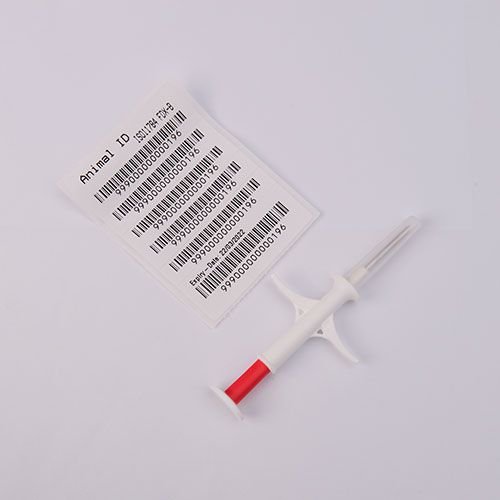

Components One set contains a syringe body, a needle, a microchip, six bar-code stickers, a printed pouch.
Bio-Technology Microchip won’t migrate after implanted as Parylene-coated technology enables the microchip grow together with the animal’s hypoderm
Electronic File ICAR approved ID numbers in electronic file.
Easy management in PC or PDA.
Reading distance  Reading distance varies greatly per application due to reader quality & environmental factors.
Recommendation  DW(A)R152 and DW(A)R152st reader can read ISO compliant chips and transfer data to PC via Bluetooth or USB. DW(A)R152i2 reads chip and barcode.

Particularly suitable for Pet management, livestock & poultry management, Wild animal management
