FDX-B and HDX RFID Rumen Bolus Tag Applicator for Cattle,Sheep,Goat and Deer

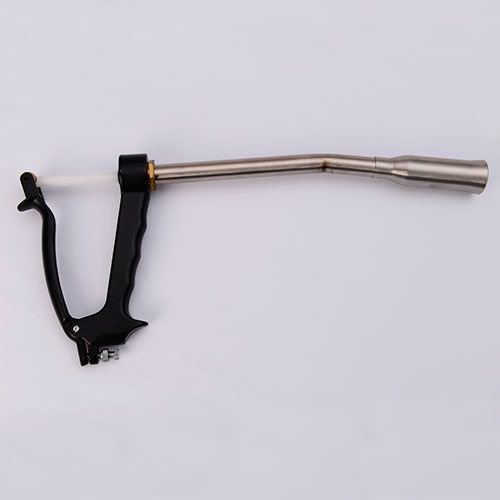

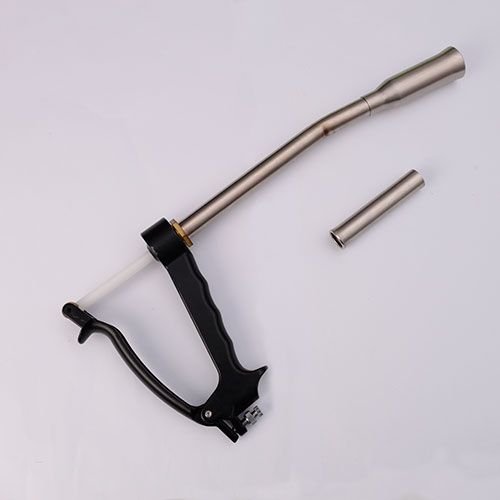

FDX-B and HDX RFID Rumen Bolus Tag Applicator

Category: Ruminal Bolus

Ruminal Bolus

Model DWD-912Tag Applicator

Overview – FDX-B and HDX RFID Rumen Bolus for Animal

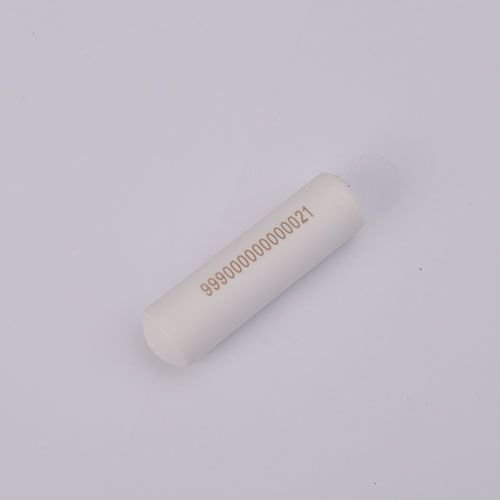

The RFID rumen bolus tag has been developed to permanently identify ruminants with an ID bolus that lodges in the reticulum. It’s another choice besides RFID Ear tag can be implanted into animal’s rumen via oesophagus by applicator.

The bolus tag features EM or Hitag chips sealed within biocompatible ceramic. It is engineered to provide a sophisticated, tamper-proof, yet economical method of employing radio frequency for permanent, positive and safe identification. The RFID rumen bolus exemplifies superior performance, reliability and long term retention.

We recommend the bolus when positive identification is important.

ISO11784/85 134.2kHz HDX or FDX-B RFID bolus tag is a Special design for ruminant animals,which mainly used for cattle,small cattle,sheep,goat or deer.

Rumen bolus is recommended as a safe, permanent and tamper-proof method of electronic identification and Cattle Bolus is also suitable to trace stolen cattle.

Specifications –RFID Ceramic Rumen Bolus

Work Frequency 134.2kHz or 125kHz
Tag Compatibility ISO11784/85 FDX-B and HDX
Chips dimension Ф4 mm x 34 m
Chips material Bio-Glass
Bolus material Biocompatible ceramic
Reading range Up to 15cm
Work Temperature Operating at -25°C to 80°C
Store Temperature Storage at -40°C to 120°C
Work Humidity 60°C, 95%RH
ESD immunity ± 2Kv peak

Item NO

DWD-912S19.5g) Weight 19.5g
Ø11.1±0.3mm
DWD-912L(67.5g) Weight 67.5g
Ø19.1±0.3mm

the dimension of bolus can be customized if the quantity is large enough.

RFID cattle sheep deer bolus tag

Application Usage –RFID Ceramic Rumen Bolus

Cattle,Small Cattle,Sheep,Goat and Deer
